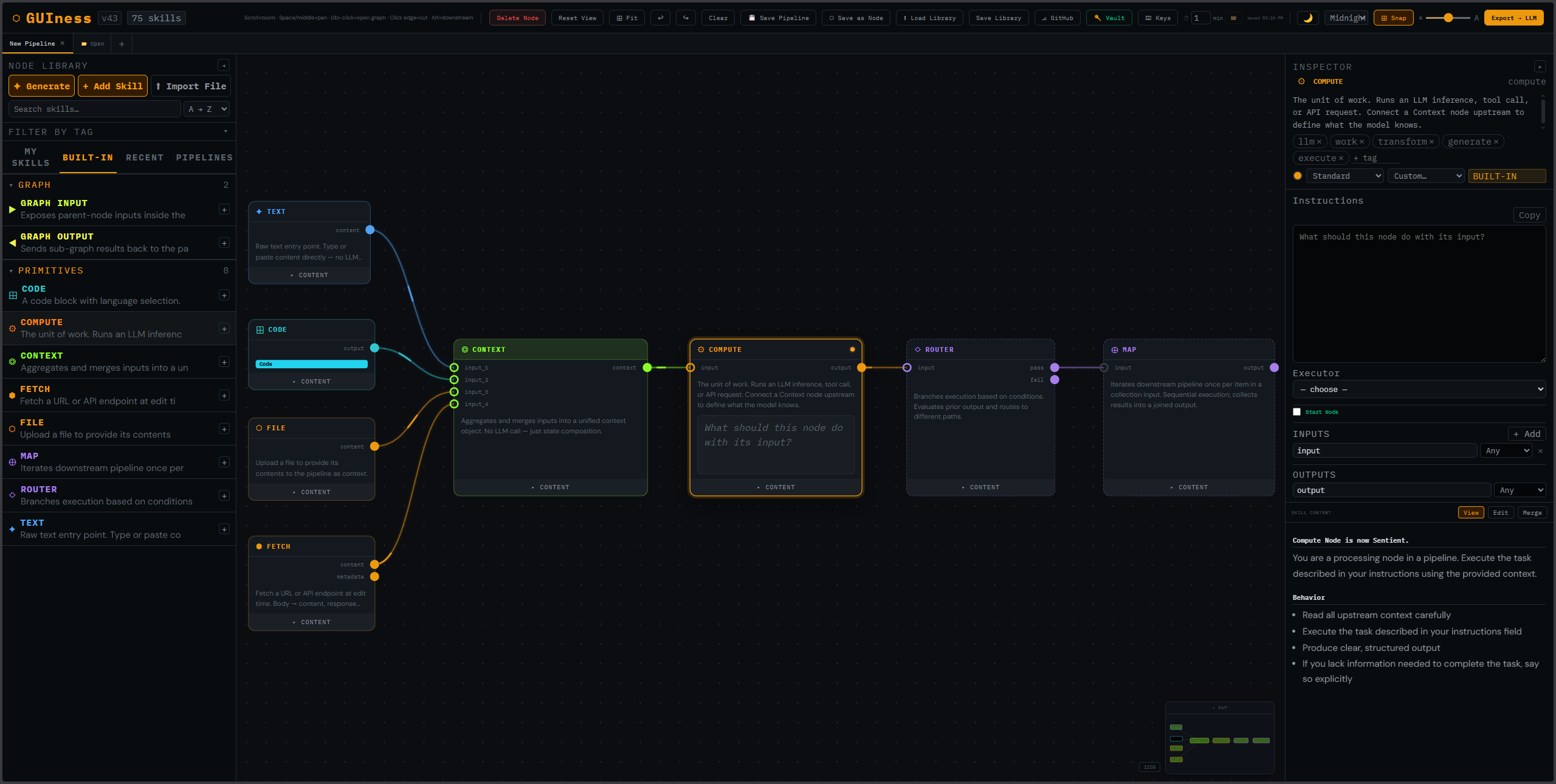

UI Overview

Hover over any region of the screenshot to see what it does.

Top Toolbar — ◈ GUIness logo, version badge, live skill count, and a status line of canvas keybindings. Action row: Delete Node, Reset View, Fit, Undo, Redo, Clear, Save Pipeline, Save as Node, Load Library, Save Library, GitHub (Gist sync), Vault (credentials), ⌨ Keys (customizable shortcuts), autosave interval + folder picker, "saved" status indicator, 🌙 light/dark toggle, theme preset selector (Midnight, Ember, Forest, Ocean, Violet), Snap toggle, UI text size slider, and the Export → LLM drawer.

Pipeline Tabs — Each open pipeline is a tab. Click to switch, double-click to rename, drag to reorder, × to close. ▣ Open recovers recently-closed pipelines. The + button creates a new pipeline.

Node Library — Browse, search, sort, and filter your skills. Four tabs: My Skills, Built-In, Recent, Pipelines. Skills are grouped into collapsible, renamable categories. Click + next to any skill to add it to the canvas, or drag a skill onto the canvas. Top actions: Generate creates a skill with AI, Add Skill opens the manual wizard, Import File loads .md/.json/.txt/.skill/.zip files.

Pipeline Canvas — The main workspace. Drop nodes here, connect them with edges, drag to move, scroll to zoom. Pan with middle-click or Space+drag. Double-click empty space for quick-add search. Double-click a custom skill node to dive into its internal graph. Alignment guides appear automatically during drag. The minimap in the bottom-right shows an overview with a viewport indicator.

Inspector Panel — Details for the selected library skill or canvas node. Top: glyph, name, description, tags, color, shape, category, Built-In toggle. Middle: node-specific fields (Instructions, Code, Variables, etc.), Executor, Start Node toggle, I/O port management. Bottom: Skill Content viewer/editor with View / Edit / Apply / Merge controls. Edits to a library skill auto-save; edits to a canvas node affect only that instance.

Minimap — A birds-eye view of your pipeline. Nodes appear as colored rectangles, edges as lines. The pale rectangle shows your current viewport position. Click to jump, drag to pan. Collapse with the ▾ MAP toggle.

Primitives

GUIness has 8 primitive node types. Everything else — custom skills, templates, agents — is composed from these primitives.

System Nodes

Two additional nodes are used for sub-graph wiring:

• ▶ GRAPH INPUT — Exposes parent node inputs inside a sub-graph
• ◀ GRAPH OUTPUT — Sends sub-graph results back to the parent node

Connections & Flow

Port Types

• Input ports (left side) — Open circles with a colored stroke. Accept data from upstream nodes. When connected, the stroke fills with the node's color.
• Output ports (right side) — Solid filled circles. Send data downstream.

Making Connections

1. Hover over an output port until the cursor changes to a crosshair
2. Click and drag toward an input port on another node
3. Release on the target port to complete the connection

Magnetic snap — if you release the connection drag within 24px of an eligible input port, it automatically snaps and connects. You don't need to land exactly on the port.

Connections flow left-to-right by convention. The system prevents cycles — you can't create a loop that would cause infinite execution (except through Router nodes with explicit loop control).

Data Flow

In Single mode, all connected nodes are compiled into one monolithic prompt sent to the LLM. In Chain mode, nodes execute sequentially in topological order, with each node's output piped as input to the next. Context nodes merge multiple inputs without an LLM call. Router nodes evaluate conditions and branch execution.

Building Pipelines

Creating a Pipeline

Click the + button in the tab bar to create a new empty pipeline. Each pipeline has its own canvas, nodes, edges, and undo/redo history.

Adding Nodes

Several ways to add nodes to the canvas:

• Library — Click the + button next to any skill, or drag a skill from the Node Library onto the canvas
• Quick Add — Double-click on empty canvas (or press Q) to open a search popup and place a node at that position
• Import — Use ⬆ Import File or drag-and-drop .ppln, .sklb, .md, .txt, .zip, or .json files onto the canvas
• Keyboard — Press / to focus the library search, then click + to place

Organizing

• Drag nodes to position them — alignment guides appear automatically when edges align with neighboring nodes
• Resize width by dragging the left or right edge of a node
• Multi-select with Shift+click or lasso (click and drag on empty canvas)
• Snap to grid toggle in the top toolbar for precise alignment

Node Features

• Double-click the title to rename a node inline
• Content drawer — click the ▸ CONTENT toggle to expand/collapse a preview of the node's skill content. Includes View/Edit modes.
• Bottom drag bar on the content drawer — resize the drawer height
• Double-click the node body to open its internal graph (for custom skills)
• Node count badge — pipeline-type nodes with internal graphs show a small badge (e.g. 5n) indicating how many internal nodes they contain
• START badge — a green pill in the header when this node is marked as the pipeline's explicit start point (toggle via Inspector or right-click → Set as Start Node)
• Divergence dot — a small amber dot next to the node title means the node's skill content has been edited here on the canvas and now differs from the library version. Use the content drawer's Merge button to push changes back to the library.
• Warning badge — Map nodes whose body contains one or more Router nodes display an amber ⚠ in the header, since each Map iteration could trigger nested loops. The Inspector's Fields tab shows the projected upper-bound call count.
• Right-click context menu — Set as Start Node, Open Graph, Save as Skill, Merge to Library, Copy, Paste, Duplicate, Delete
• Delete animation — deleted nodes fade out with a brief scale-down animation for visual confirmation

Saving

Pipelines auto-save at a configurable interval (default: 1 minute). You can also manually save with 💾 Save Pipeline or ◎ Save as Node to save as a reusable file.

Internal Graphs

Every custom (non-primitive) skill can contain its own internal graph — a sub-pipeline that defines the skill's behavior as a composition of other nodes.

Opening

Double-click any custom skill node to "dive into" its internal graph. The canvas zooms into the sub-graph, and a breadcrumb trail appears showing your navigation depth.

Graph I/O

Inside a sub-graph, use ▶ Graph Input and ◀ Graph Output nodes to wire data from the parent node's ports into the sub-graph and back out.

Navigation

Click the breadcrumb links to navigate back up. The root level shows your main pipeline canvas.

Node Library

The left panel contains all available skills organized into tabs and categories.

Tabs

Actions

• ✦ Generate — Create a skill using AI. Select a provider, model, and describe what you want.
• + Add Skill — Create a skill manually via the wizard (name, color, glyph, ports, fields, content).
• ⬆ Import File — Import .md, .json, .txt, .skill, or .zip files. Supports multiple files at once. Zip files are unpacked and reconstructed as connected node graphs.

Skill Card Actions

Hover over any skill in the library to reveal action buttons:

• Edit — Open the skill wizard to modify
• Duplicate — Create an editable copy
• Open Graph — View the skill's internal node graph
• Delete — Remove from library (with confirmation)

Categories

Skills are grouped by category. Category headers are collapsible (click to toggle) and editable (double-click to rename). Sorting within categories is controlled by the dropdown next to the search bar: A→Z, Z→A, Newest, Oldest.

Inspector Panel

The right panel shows details for the currently selected node. The ▸ collapse button and "INSPECTOR" header are always visible at the top, regardless of whether a node is selected. The panel adapts its content based on whether you selected a node from the library or from the canvas.

Edits to a library skill (name, glyph, tags, color, etc.) save automatically to localStorage and propagate to every canvas instance that hasn't diverged. Edits to a canvas-node selection affect only that node instance — use Apply to commit content changes to the instance, or Merge to push them back to the library skill.

Top Section — Metadata

• Glyph — Click to change the node's icon
• Name — The skill label. Editable.
• Description — Auto-resizing textarea
• Tags — Type and press Enter to add. Click × to remove.
• Color dots — Click to assign a color. Double-click any dot to customize it with a color picker. + adds new custom colors.
• Shape — Standard (solid border), Dashed, or Ghost (minimal)
• Category — Dropdown with existing categories + Custom option
• Built-In toggle — On/Off for whether the skill is locked

Fields Section

When a canvas node is selected, the inspector shows its configurable fields. These vary by primitive:

• Text — Content (codeeditor)
• File — Upload File, Description, Captured Content
• Fetch — URL / Endpoint, Headers, Fetch trigger button, Captured Content, Response Metadata, Description
• Compute — Instructions, Executor
• Code — Language, Code, Tool Parameters (JSON Schema)
• Router — Condition, Evaluation mode, Max Loops
• Context — Variables, Merge Mode
• Map — Split Mode, Custom Delimiter, Join Separator, Max Iterations

Below the fields, a Start Node checkbox lets you mark this node as the explicit starting point of the pipeline. Marked nodes display a green START badge in their header.

I/O Ports

The INPUTS and OUTPUTS sections let you add, remove, rename, and set types for the node's connection ports. Click + Add to create new ports. Click Edit to modify port names.

Content Tab

Shows the skill's raw content rendered as markdown. For logic-family nodes (Compute, Router, Map, custom skills), the content drawer uses a View / Edit / Cancel / Apply / Merge model:

• View — rendered markdown preview
• Edit — switch to a raw textarea for changes
• Apply — commit changes to this canvas node only. The amber divergence dot appears in the node header to indicate the node now differs from its library skill.
• Cancel — discard changes
• Merge — push the diverged content back to the library skill, so all instances (including future ones) reflect the change. Ghosted until divergence exists. Opens a chooser with two options: Update existing skill overwrites the library version; Branch into new skill creates a sibling with a new name, leaving the original intact.

Input-family nodes (File, Fetch) use a direct inline-edit textarea instead of the toggle model — content changes apply immediately.

Graph Tab

For custom skills, shows an overview and the Open Graph button to dive into the internal sub-graph.

Canvas & Navigation

Pan & Zoom

• Pan — Middle-click drag, or hold Spacebar + left-click drag
• Zoom — Scroll wheel. The zoom percentage is shown in the bottom-right.
• Reset View — Click the Reset View button in the toolbar
• Zoom to Fit — Click ⊞ Fit or press Home to frame all nodes in view

Quick Add

Double-click on empty canvas space to open a quick-add search popup. Type to filter skills by name or category, use arrow keys to navigate, and press Enter to place a node at that position. Press Escape to dismiss.

Selection

• Click a node to select it
• Shift+Click to add/remove from selection
• Lasso — Click and drag on empty canvas to draw a selection rectangle
• Alt+Click a node to select it and all downstream connected nodes

Alignment Guides

When dragging nodes, alignment guide lines appear automatically when a node's edge (left, right, top, bottom, or center) aligns within 4px of another node's edge. The dragged node snaps to the aligned position for precise layout.

Minimap

A collapsible birds-eye view in the bottom-right corner. Shows all nodes as colored rectangles with edges. Click to navigate, drag to pan. Selected nodes are highlighted with a thicker border.

Collapsible Panels

Both the left (Library) and right (Inspector) panels can be collapsed to give the canvas more room. Click the ◂ / ▸ button, or click the vertical label strip to expand. Panel widths are persisted across sessions.

Export to LLM

Click Export → LLM in the top right to open the export drawer.

Output Formats

Three tabs compile your pipeline into different formats:

Prompt Size

The bottom of the drawer shows an estimated token count (~4 chars/token) and cost estimate based on the selected model's pricing.

Connected Nodes Only

Only nodes that are connected to at least one edge are included in the export. Disconnected nodes are ignored.

Run Pipeline

The Run section in the Export drawer lets you send your compiled pipeline directly to an LLM and see results in real time.

Providers

Select from Anthropic, OpenAI, Gemini, or Local. Each provider uses API keys stored in the Vault. Gemini models are fetched live from the API. The Local provider works with Ollama, Friday, or any OpenAI-compatible server (LM Studio, llama.cpp, Jan).

Execution Modes

Response Area

• Raw / Preview — Toggle between markdown rendering and live HTML preview (with sandboxed iframes for HTML blocks)
• Edit — Make the response editable inline. Formatting is preserved.
• Copy / Save — Copy as text or download with auto-detected file extension (.md, .html, .py, etc.)
• Follow-up — Send additional messages with full conversation history preserved
• Clear — Reset the response and conversation history

Cost Projection & Safety

When the graph contains Map nodes with downstream Routers, the upper-bound LLM call count can grow quickly. GUIness adds three layers of visibility:

• Canvas badge — Map nodes whose body contains Routers show an amber ⚠ in the header
• Inspector projection — the Map node's Fields tab shows a dim line like ⚠ Body contains 2 Routers (max 6 loops). With 10 iterations, up to ~70 LLM calls.
• Pre-run confirm — before running, if the projected total exceeds HIGH_CALL_THRESHOLD (default: 100), a confirmation dialog appears. Below threshold the dialog never shows.

Post to Social

The Post to Social panel sits below the Run section in the Export drawer. Click ▸ POST TO SOCIAL to expand it.

Rich Text Editor

A full formatting toolbar with bold, italic, underline, strikethrough, headings (H1/H2/H3), bullet and numbered lists, alignment, font selection, font size, link insertion, and clear formatting. The LLM response automatically loads into the editor when opened.

Platforms

Four platform chips: Bluesky, LinkedIn, Twitter, and Instagram. Each shows a live character count. Grey chips indicate no credentials in the Vault. Multiple platforms can be selected for simultaneous posting.

Images

Drag and drop or click to browse. Supports multiple images with thumbnail previews. Per-platform limits are enforced at preview time.

Preview & Post

The 👁 Preview button shows a per-platform preview with character counts and truncation warnings. The 📤 Post button shows a confirmation dialog before posting. Results are displayed per-platform with success/failure status.

Save as HTML

The 💾 button in the toolbar saves the editor content as a standalone HTML file.

Vault & Credentials

The Vault stores API keys and tokens encrypted with a master password using AES-GCM. Credentials are only decrypted in memory during your session.

Supported Credential Types

Themes & Display

GUIness ships with five built-in color themes plus a light/dark toggle and a global UI text size slider. All three controls live in the top toolbar and persist across sessions via localStorage.

Theme Presets

The theme dropdown in the toolbar offers five OKLCH-based presets:

Each preset swaps a fixed set of CSS custom properties on :root. To add your own preset, extend the THEME_PRESETS map in the CONFIG block.

Light / Dark Toggle

The 🌙 / 🌑 button next to the theme dropdown flips between the active preset's dark and light variants. The toggle is independent of the preset selector — you can run any preset in either mode.

UI Text Size

The A — A slider on the right side of the toolbar scales the base font size from 10px to 20px in 0.5px steps. The setting applies globally and survives reloads.

Autosave & Backup

localStorage

Both skills and pipelines are saved to localStorage. Every edit — rename, tag, color change, content edit, anything — triggers a debounced save (500ms idle) so rapid operations like dragging or batch edits collapse into a single write. The configured autosave interval (default: 1 minute) triggers a full save regardless of edit state. A safety-net flush fires immediately on page close.

File System Backup

Click the 📁 button in the toolbar to select a backup directory. Three files are written on each autosave:

• pb-skills-autosave.json — Your skill library
• pb-pipelines-autosave.json — All open pipelines
• pb-autosave-snapshot.json — Combined snapshot with timestamp

Note: Requires HTTPS or localhost. Not available on file:// protocol.

Page Unload

A safety-net save fires on page close/refresh to catch anything between the last autosave tick and the tab closing.

GitHub Gist Sync

Sync your skills and pipelines to a private GitHub Gist for cloud backup and cross-device access.

Setup

1. Create a classic GitHub token (not fine-grained) with gist scope
2. Add it to the Vault as a GitHub Token
3. Click ⎇ GitHub in the toolbar to open the sync panel
4. Click + Create Gist to create a new private Gist, or paste an existing Gist ID

Sync Options

• Scope: Skills / All — Sync just skills, or skills + pipelines
• Auto-Sync: On / Off — When On, pushes to Gist on every autosave tick
• ↓ Pull — Download from Gist. Conflict detection: remote wins if newer, local wins if newer (skipped).
• ↑ Push — Upload to Gist. Only user skills are pushed (builtins are excluded).

Import & Export

File Formats

• .ppln — Pipeline file. Contains the pipeline name, node stack, and all referenced skill definitions bundled for portability.
• .sklb — Skill library file. A JSON array of skill objects.
• .md / .txt — Imported as a single skill node (frontmatter parsed for name/description).
• .skill / .zip — Multi-file skill archive, unpacked and reconstructed as a connected graph.
• .json — Legacy format, accepted on import. Content is sniffed: if it has a stack property it's treated as a pipeline; if it's an array, a skill library; otherwise a single skill.

Drag & Drop

Files can be dragged and dropped directly onto the app:

• Canvas drop — Pipelines show a choice modal ("Open as New Tab" or "Add to Current Pipeline" as an embedded node). Libraries show a skill picker with checkboxes. Skill files place a node at the drop position.
• Library panel drop — Same routing, but skill files add to the library only without placing a node on the canvas.
• Inspector drop — Ignored.

Skill Import

The ⬆ Import File button accepts multiple files of any supported format. For .skill / .zip archives:

• Python/JS/Bash files → Code nodes
• JSON/YAML/config files → Context nodes
• SKILL.md → Main Compute skill
• Other .md files → Compute nodes
• Connections inferred from import statements, numbered file prefixes, and folder structure

Pipeline Save/Load

• 💾 Save Pipeline — Saves as a .ppln file with all referenced skills bundled
• ⬡ Save as Node — Saves the active pipeline as a reusable node in the Pipelines library tab
• Open — Click the 📂 Open button in the tab bar to load a .ppln or legacy .json file. Missing skills are detected and you're prompted to import them.

Library Save/Load

• Save Library — Exports your entire skill library as a .sklb file
• Load Library — Imports a .sklb or legacy .json library, merging with existing skills

Keyboard Shortcuts

All shortcuts below are remappable. Click ⌨ Keys in the toolbar (or press Ctrl+/) to open the keybindings overlay, then click Edit next to any binding and press the new key combination. Bindings persist to localStorage. The structural keys — Space, Alt, Escape, Tab — are fixed and can't be remapped.
